Meldon Industries - Powerdock Horizontal Power Solution

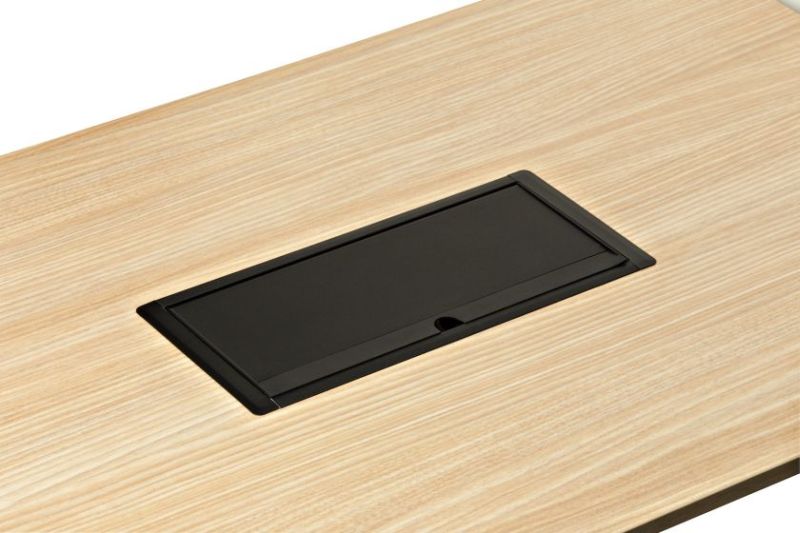

The Horizontal Powerdock makes use of the Optima extrusion by mounting it horizontally within the work surface and giving it the ability to tilt up, exposing the sockets and peripherals to the surface.

The unit can be closed while the plugs are still attached to the outlets freeing up valuable work-surface space. A rubber flap allows for cables to exit the unit whilst in the closed position. It features a great selection of power, voice and data connections to suit any requirement and is perfect for the office environment.

Features

Virtually flush with the desk surface when closed
Unit remains powered when closed
Shuttered data and comms outlets
Flexible cable cover
Easy installation
Robust and reliable for years of service

Electrical

Operating voltage:

220V – 250V AC @ 50 Hz

110V – 125V AC @ 60 Hz

Current: 15A (20A with upgraded wiring)

Max power:

1800W @ 110V – 125V AC

3000W @ 220V – 250V AC

Local electrical regulations determine the final electrical rating of the system. For higher current ratings, please consult your distributor directly.

Dimensions

Length: Variable (Depending on configuration)

Width: 132mm
