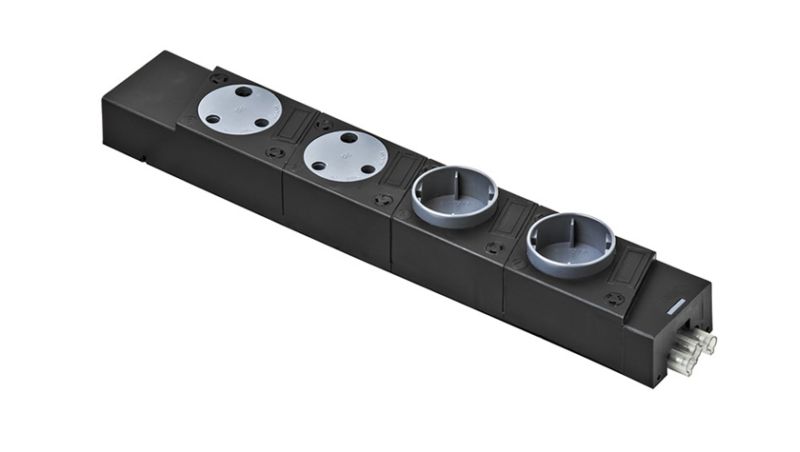

oblique 01

The Oblique range is modular electrical power outlet system available in 2, 3, or 4 outlet configurations and manufactured from tough, high grade engineering plastic materials. All versions can be supplied in a variety of switching options (non switched, master-switched, individually switched) as well as fusing options (non fused, individually-fused).

Features

This product has revolutionised the modular office power system by allowing:

Direct adjacent units without the need for interconnecting leads
Up to 30 different international sockets types
The selection of 23 different angles of orientation for each socket
Dual power (2 circuits in one unit)
Numerous mounting options – under desks and in screens
SABS approved
Wieland connectors

Electrical

Operating voltage:

220V – 250V AC @ 50 Hz

110V – 125V AC @ 60 Hz

Current: 15A

Max power:

1800W @ 110V – 125V AC

3000W @ 220V – 250V AC

Local electrical regulations determine the final electrical rating of the system. For higher current ratings, please consult your distributor directly.

Dimensions

2 Way: 204mmL x 55mmW x 36.5mmH

3 Way: 273mmL x 55mmW 36.5mmH

4 Way: 342mmL x 55mmW 36.5mmH
