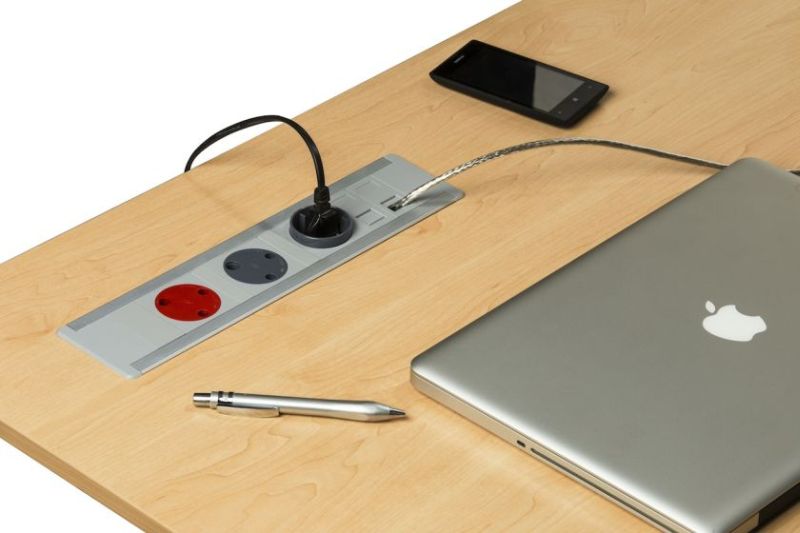

This modular aluminium-based workstation power outlet system, allows the user to customise according to the number of power, voice /data, switches and protections devices the client requires, as well as the bespoke layout and configuration. The housing is also available in a variety of finishes and colours. The Omega has been designed as a cost effective, in desk mounted solution available in standard power, dual power or hybrid power options.  Power protection modules or dual voltage systems can be incorporated into these if required.

Features

  • Available with modular protection devices (power filters, circuit breakers, earth leakage devices)
  • Modular – any combination of power and/or communication outlets available
  • Any of 30 different international sockets types can be fitted to these units
  • The selection of 23 angles of orientation of each socket (certain local regulations limit options in some instances)
  • Can be supplied with two or more circuits in one unit
  • Hybrid power – power and data in one unit
  • Robust aluminium housing

Electrical

Operating voltage:

220V – 250V AC @ 50 Hz

110V – 125V AC @ 60 Hz

Current: 15A

Max power:

1800W @ 110V – 125V AC

3000W @ 220V – 250V AC

Local electrical regulations determine the final electrical rating of the system. For higher current ratings, please consult your distributor directly.

Dimensions

Length – Variable (Depending on configuration)
