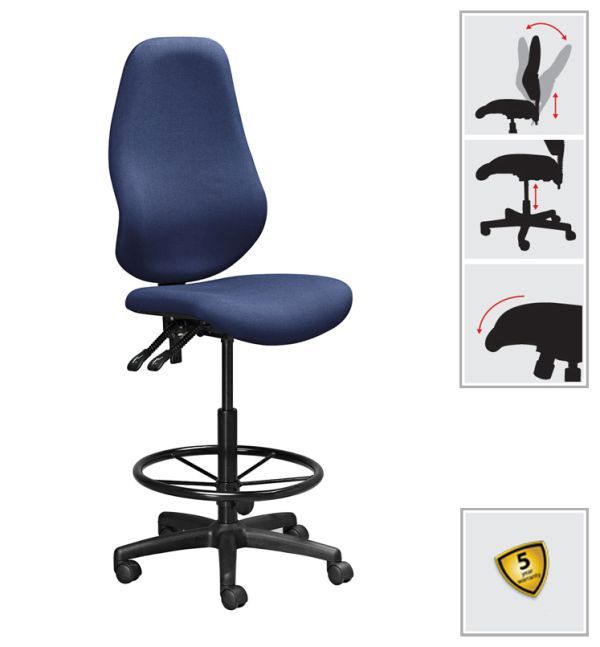

S4009 - Operator High Back Draughtsman

Mechanism

• Back rake
• Right hand lever - Front
  - Height adjustment lever
• Right hand lever - Back
  - Back rest adjustment lever

Gas Spindle

• Draughtsman – Class 3

Base

• 700mm Nylon base with 50mm hooded castors
• Option of Chrome base

Foot ring

• 25mm Round tubing – Hot rolled steel with 1.2mm wall thickness
•10mm Mild steel struts
• Option of chrome, nylon or free-standing foot ring

Seat

• Pressed plywood
• Laminated VC64 chip foam and VP70 high density foam

Back

• Pressed plywood
• VP30 medium density foam
• Back rest is height adjustable
- Loosen hand knob on back of mechanism and lift or lower back

Arm options

• Y50 – Nylon Loop arm
• Y75 – Nylon T-shape arm
• Y100 – Nylon Flamingo arm
• Y200 – Nylon Terry arm
• Y400 – Adjustable arm
• Y500 – Chrome Y arm
• Y600 – Chrome arm
• Y700 – Chrome arm

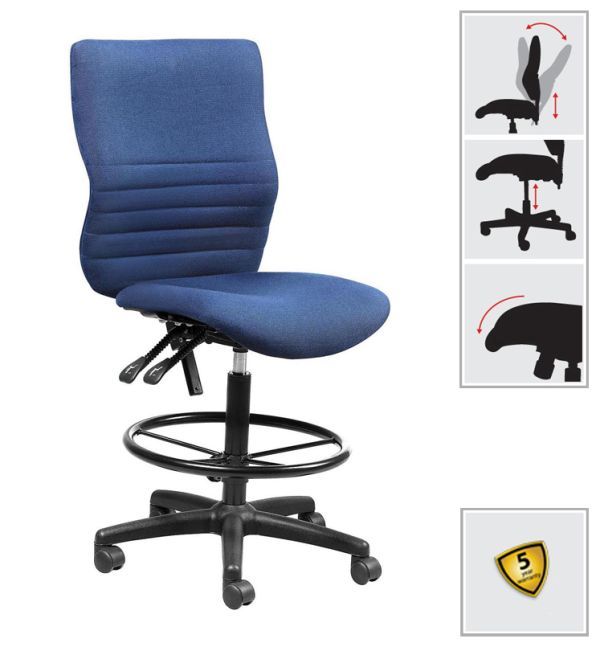

S5009 - Operator Mid Back Draughtsman

Mechanism

• Back rake
• Right hand lever - Front
  - Height adjustment lever
• Right hand lever - Back
  - Back rest adjustment lever

Gas Spindle

• Draughtsman – Class 3

Base

• 700mm Nylon base with 50mm hooded castors
• Option of Chrome base

Foot ring

• 25mm Round tubing – Hot rolled steel with 1.2mm wall thickness
•10mm Mild steel struts
• Option of chrome, nylon or free-standing foot ring

Seat

• Pressed plywood
• Laminated VC64 chip foam and VP70 high density foam

Back

• Pressed plywood
• VP30 medium density foam
• Back rest is height adjustable
- Loosen hand knob on back of mechanism and lift or lower back

Arm options

• Y50 – Nylon Loop arm
• Y75 – Nylon T-shape arm
• Y100 – Nylon Flamingo arm
• Y200 – Nylon Terry arm
• Y400 – Adjustable arm
• Y500 – Chrome Y arm
• Y600 – Chrome arm
• Y700 – Chrome arm

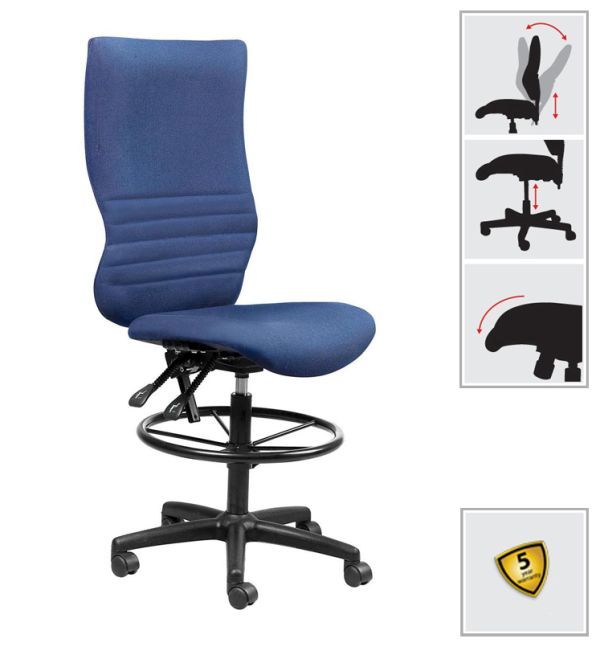

S6009 - Operator High Back Draughtsman

Mechanism

• Back rake
• Right hand lever - Front
  - Height adjustment lever
• Right hand lever - Back
  - Back rest adjustment lever

Gas Spindle

• Draughtsman – Class 3

Base

• 700mm Nylon base with 50mm hooded castors
• Option of Chrome base

Foot ring

• 25mm Round tubing – Hot rolled steel with 1.2mm wall thickness
•10mm Mild steel struts
• Option of chrome, nylon or free-standing foot ring

Seat

• Pressed plywood
• Laminated VC64 chip foam and VP70 high density foam

Back

• Pressed plywood
• VP30 medium density foam
• Back rest is height adjustable
- Loosen hand knob on back of mechanism and lift or lower back

Arm options

• Y50 – Nylon Loop arm
• Y75 – Nylon T-shape arm
• Y100 – Nylon Flamingo arm
• Y200 – Nylon Terry arm
• Y400 – Adjustable arm
• Y500 – Chrome Y arm
• Y600 – Chrome arm
• Y700 – Chrome arm
