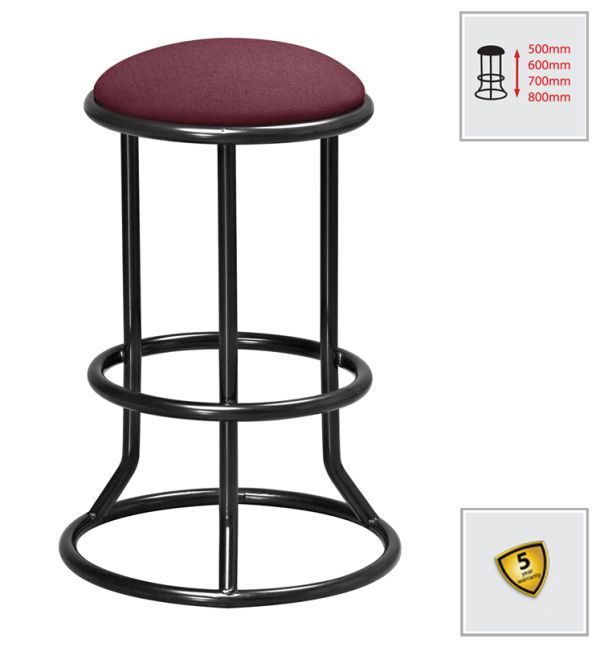

B3R500 - B3RS800

Frame

• Base and support rings
  - 25.4mm Round tubing – Hot rolled steel with 1.2mm wall thickness
• Legs
  - 25.4mm Round tubing – Hot rolled steel with 1.6mm wall thickness
• Option of chrome frame

Seat

• 16mm Chipboard - Ø360mm
• Moulded foam

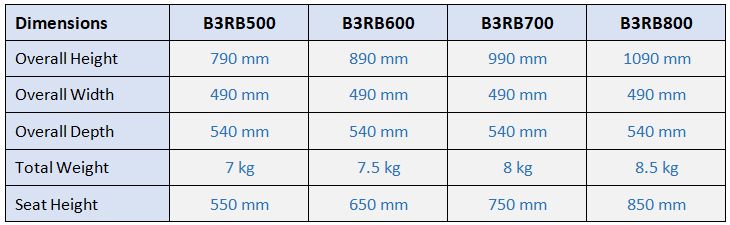

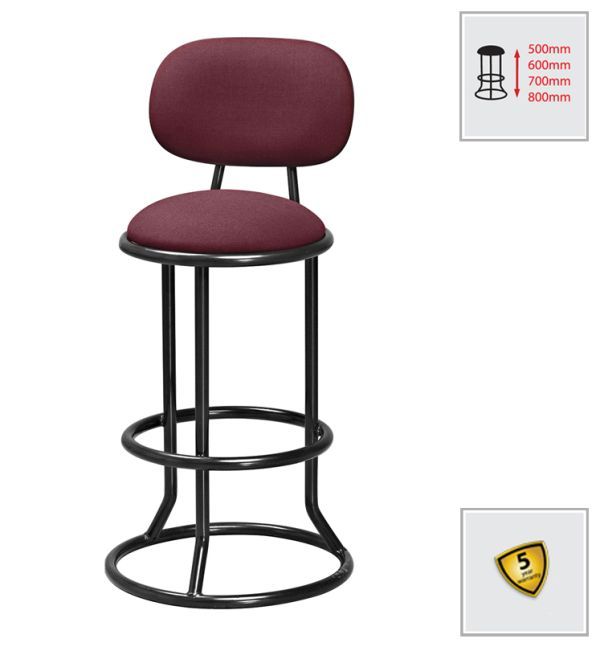

B3RB500 - B3RB800

Frame

• Base and support rings
  - 25.4mm Round tubing – Hot rolled steel with 1.2mm wall thickness
• Legs
  - 25.4mm Round tubing – Hot rolled steel with 1.6mm wall thickness
• Option of chrome frame

Seat

• 16mm Chipboard - Ø360mm
• Moulded foam

Back

• Pressed plywood
• VP30 medium density foam

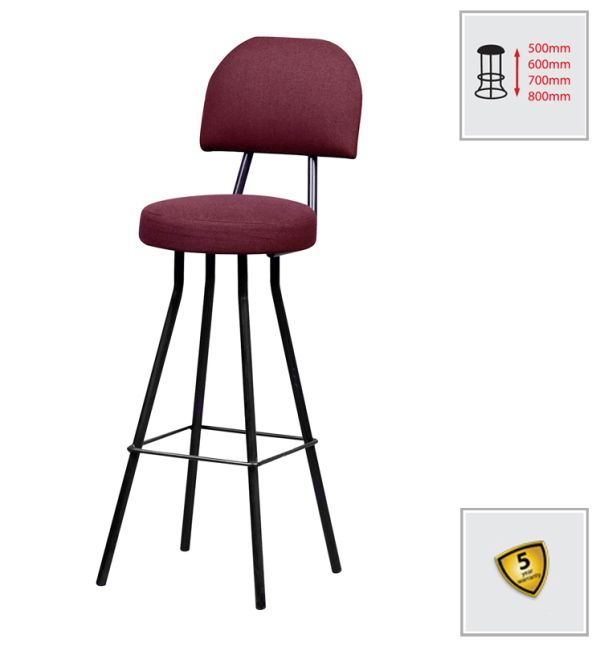

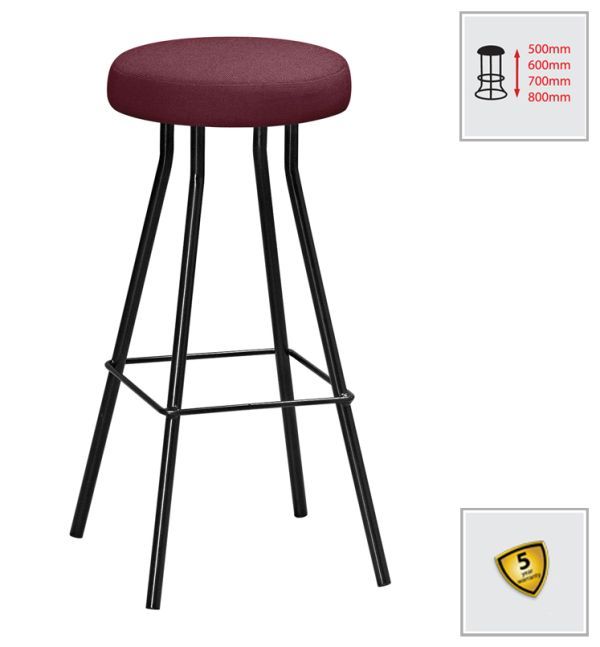

BB500 - BB800

Frame

• 19mm Round tubing – Hot rolled steel with 1.6mm wall thickness
• 200 x 3mm Base plate
• 8mm Mild steel round bar foot rest
• Available in heights of 500, 600, 700 and 800mm

Seat

• 16mm Chipboard - Ø315mm
• VC 64 Chip foam, covered with 10mm sheet foam

Back

• 16mm Chipboard
• VP30 medium density foam

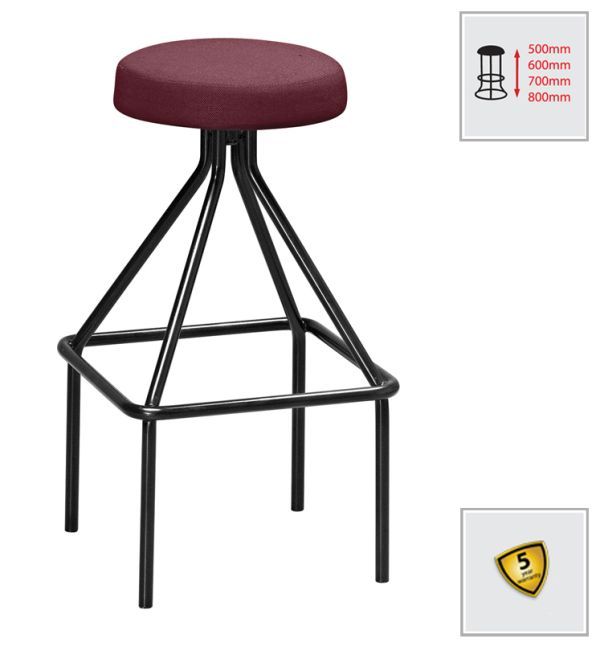

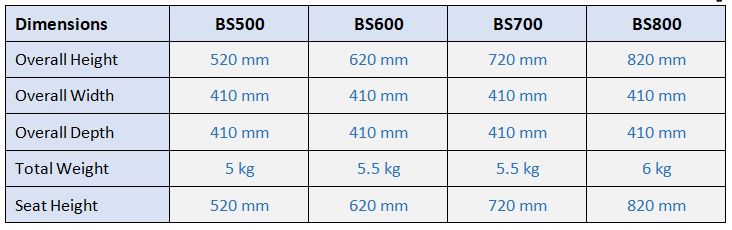

BS500 - BS800 (Swivel Bar Stool)

Mechanism

• Swivel plate – 200 x 3mm
• Machined steel step pin
  - Not height adjustable

Frame

• Machined steel bush
• 19mm Round tubing – Hot rolled steel with 1.6mm wall thickness
• 19mm Round tubing foot rest
• Available in heights of 500, 600, 700 and 800mm

Seat

• 16mm Chipboard - Ø315mm
• VC 64 Chip foam, covered with 10mm sheet foam

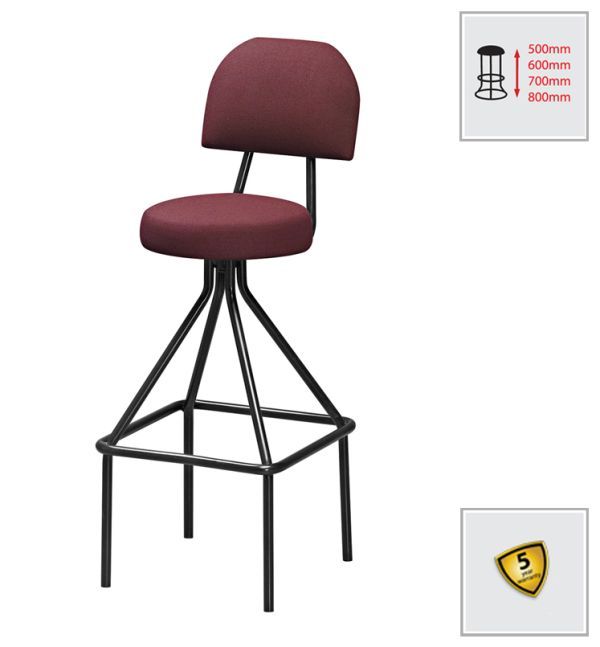

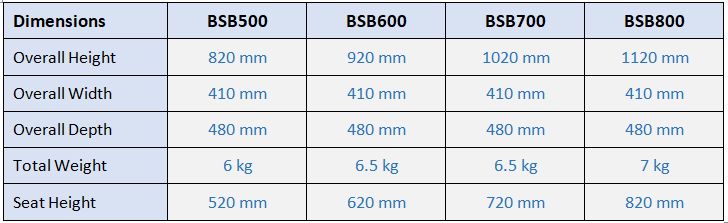

Back (BSB)

• 16mm Chipboard
• VP30 medium density foam

BS500 - BS800 (Swivel Bar Stool)

Standard Features

Frame ø19 Round Tubing
Seat & Back - Wood - 16mm Chipboard
Seat - Foam - VC64 Chip Foam
Back - Foam - VP30
Powerdercoating 60-70
Micron Satin Black
0.4m Fabric (Seat = 0.4m & Back=0.4m)
Option Sizes: 500mm, 600mm, 700mm or 800mm
